Catalog #

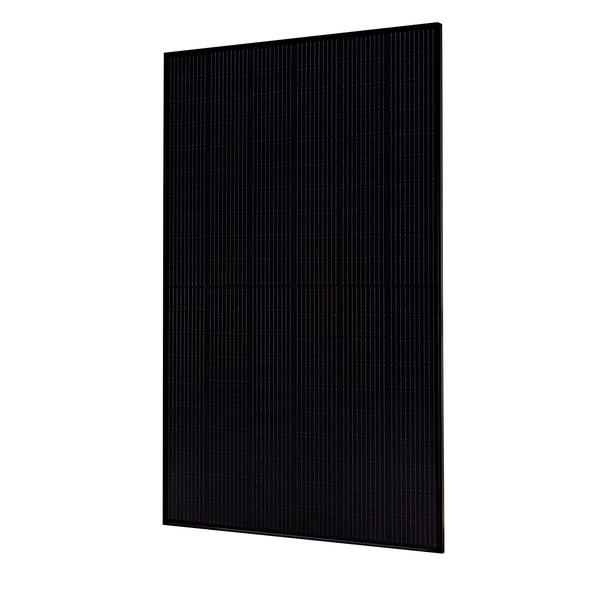

STAR-400W-M54H-M10
Mfr. Part #
STAR-400W-M54H-M10
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts STC
400 W
Cells
108
Technology
Monocrystalline
Open Circuit Voltage (Voc)
37.1
Short Circuit Current (Isc)
13.79
Max Power Voltage (Vmpp)
31
Max Power Current (Impp)
12.90
Max Current
20 A
Efficiency
20.5
Max System Voltage
1500 V
Frame Material
Aluminum
Frame Thickness (mm)
35
Frame Color
Black
Connector
MC4
Output Cables
1200mm
Series Fuse Rating (Amps)
20
Temp Coefficient (Pmpp)
-0.36
Temp Coefficient (Voc)
-0.26
Fire Classification (Type)
Type 1

General Information

Dimensions
1722 L x 1134 W x 35 H mm
Weight
21.5 Kg.
Approvals
UL61730-1/-2
UL61215-1/-2
CSA C22.2#61730-1/-2

Datasheets
