Catalog #

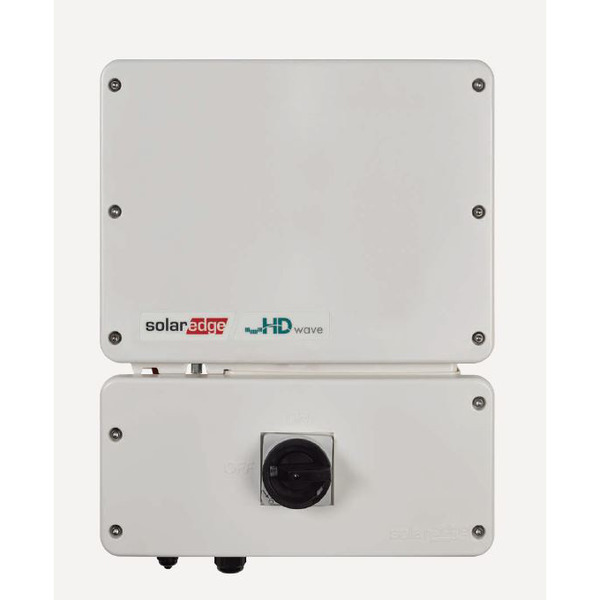

SE5000H-US000BNU4
Mfr. Part #
SE5000H-US000BNU4
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Description
Features:
- Specifically designed to work with power optimizers
- Record-breaking efficiency
- Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
- Fixed voltage inverter for longer strings
- Integrated arc fault protection and rapid shutdown for NEC 2014 and 2017, per article 690.11 and 690.12
- UL1741 SA certified, for CPUC Rule 21 grid compliance
- Extremely small
- Built-in module-level monitoring
- Outdoor and indoor installation
- Optional: Revenue grade data, ANSI C12.20 Class 0.5 (0.5% accuracy)
Technical Specifications
Continuous AC Power Output
5000 W
AC Voltages
240 VAC
AC Frequencies
60 Hz
Recommended PV Input (STC)
7750 W
Topology
Transformerless
Phase
1 Phase
Maximum DC Input Voltage
480 VDC
Maximum DC Input Current
13.5 A
Peak Efficiency
99.2 %
CEC Efficiency
99 %
General Information
Type
String Inverter
Approvals
UL
CSA
FCC
