Catalog #

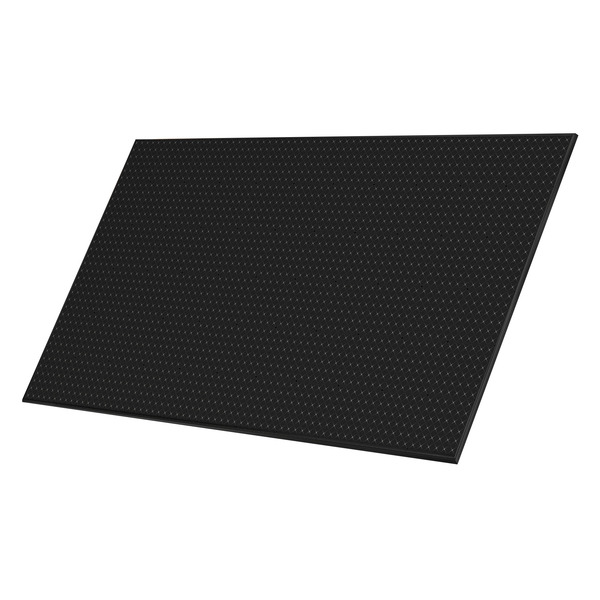

SIL 420 BG
Mfr. Part #
SIL 420 BG
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
313
Watts STC
420 W
Cells
66
Technology
Monocrystalline
Open Circuit Voltage (Voc)
46.36
Short Circuit Current (Isc)
11.4
Max Power Voltage (Vmpp)
38.51
Max Power Current (Impp)
10.91
Max Current
20 A
Efficiency
11.4
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
35
Frame Color
Black
Backsheet Material
Multilayer, integrated insulation film and electrically conductive backsheet, superior hydrolysis and UV resistance, fluorine- free PV backsheet
Connector
Staubli MC4
Output Cables
47.2 in, φ 0.22 (12AWG)
Temp Coefficient (Pmpp)
-0.377
Temp Coefficient (Voc)
-0.279
Fire Classification (Type)
Type 1
General Information
Dimensions
1864L x 1029W x 35H mm
Weight
45.8 Lbs
Series
Silfab Elite
Approvals
UL 61215-1:2017 Ed.1
UL 61215-2:2017 Ed.1
UL 61730-1:2017 Ed.1
UL 61730-2:2017 Ed.1
CSA C22.2#61730-1:2019 Ed.2
CSA C22.2#61730-2:2019 Ed.2
IEC 61215-1:2016 Ed.1
IEC 61215-2:2016 Ed.1
IEC 61730-1:2016 Ed.2
IEC 61730-2:2016 Ed.2
IEC 61701:2020 (Salt Mist Corrosion)
IEC 62716:2013 (Ammonia Corrosion)
CEC Listing
UL Fire Rating: Type 1
