Catalog #

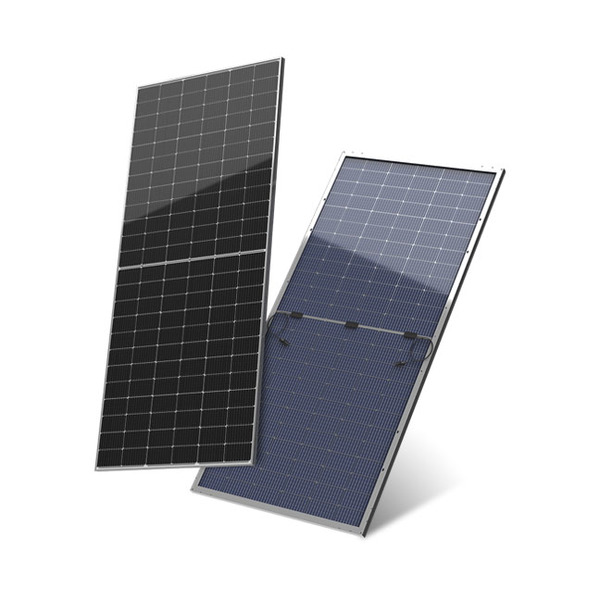

SEG-410-BMD-TB
Mfr. Part #
SEG-410-BMD-TB
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
308
Watts STC
410 W
Cells
108
Technology
PERC
Open Circuit Voltage (Voc)
37.32
Short Circuit Current (Isc)
13.8
Max Power Voltage (Vmpp)
31.05
Max Power Current (Impp)
13.21
Max Current
25 A
Efficiency
21
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
30
Frame Color
Black
Connector
MC4
Output Cables
12 AWG PV Wire(UL)/1200 mm
Temp Coefficient (Pmpp)
-0.35
Temp Coefficient (Voc)
-0.27
Fire Classification (Type)
Type 1
General Information
Dimensions
1722 L x 1134 W x 30 H mm
Weight
47.4 Lbs.
Series
Yukon
Approvals
IEC61215:2016; IEC 61730:2016; IEC62804
IEC61701
IEC62716
IEC60068
IEC61215
Fire Type (UL61730):Type1
ISO14001:2015; ISO9001:2015; ISO45001:2018
UL1703; UL61730/ETL/CEC
