Catalog #

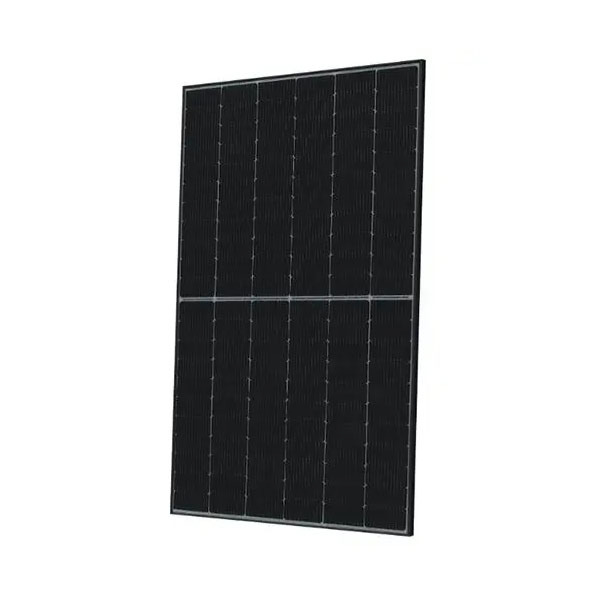

Q.PEAK DUO ML-G10+ 410
Mfr. Part #
Q.PEAK DUO ML-G10+ 410
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
307.6
Watts STC
410 W
Cells
132
Technology
Q.ANTUM DUO Z
Open Circuit Voltage (Voc)
45.13
Short Circuit Current (Isc)
11.22
Max Power Voltage (Vmpp)
38.11
Max Power Current (Impp)
10.76
Max Current
20 A
Efficiency
20.9
Frame Material
Anodized Aluminum
Frame Thickness (mm)
32
Frame Color
Black
Backsheet Material
Composite Film
Connector
Staubli MC4; IP68
Output Cables
4 mm2 Solar cable; (+) ≥ 49.2 in (1250 mm), (-) ≥ 49.2 in (1250 mm)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.27
Fire Classification (Type)
Type 2
General Information
Dimensions
1879 L x 1045 W x 32 H mm
Weight
48.5 Lbs.
Series
Q.Peak Duo ML-G10+
Approvals
UL 61730
CE-compliant
Quality Controlled PV - TUV Rheinland
IEC 61215:2016
IEC 61730:2016
