Description
Pegasus Solar's Tile Replace Mount eliminates grinding of tiles and gives you extra tiles to replace broken tiles. Reduce fatigue and increase crew productivity by making installations easier and faster.
The pre-installed T-bolt allows the flashing to install first, then the post. It also prevents wasted time aligning the flashing with a small threaded hole, common in other systems. The Sled (the roof bracket) is universal to any type of tile replace flashing - Flat, S, W and even clay tiles. The tile replace flashing 'floats' up or down the post, accommodating any thickness tile or batten / batten-less roofs. The flashing's cone is offset from water's drain path to prevent build-up of debris and leaks. The smooth front lip blocks wind-driven rain from entering under tiles.

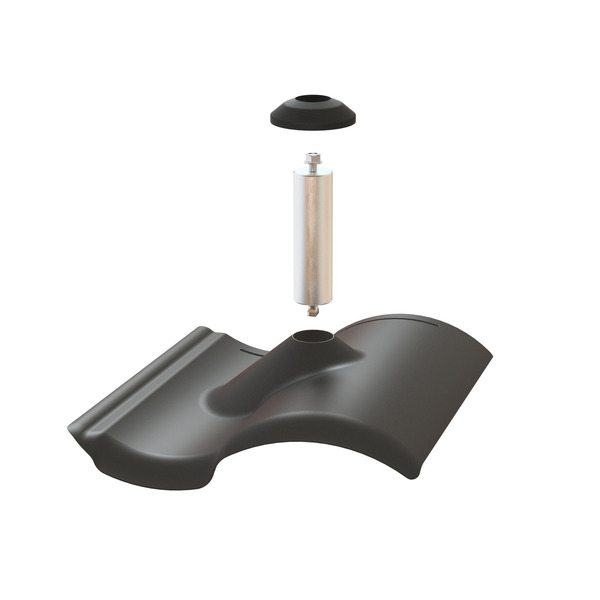

All components for the flashing are included in one 12-pack: replacement flashing (Flat, S, W), post w/ pre-installed T-bolt, EPDM boot, L-foot mounting bolt. Sled kits are universal to any type of tile replacement flashing. Kits include sled, 5/16 In. SS lags, and base flashing (optional).
The pre-installed T-bolt allows the flashing to install first, then the post. It also prevents wasted time aligning the flashing with a small threaded hole, common in other systems. The Sled (the roof bracket) is universal to any type of tile replace flashing - Flat, S, W and even clay tiles. The tile replace flashing 'floats' up or down the post, accommodating any thickness tile or batten / batten-less roofs. The flashing's cone is offset from water's drain path to prevent build-up of debris and leaks. The smooth front lip blocks wind-driven rain from entering under tiles.
All components for the flashing are included in one 12-pack: replacement flashing (Flat, S, W), post w/ pre-installed T-bolt, EPDM boot, L-foot mounting bolt. Sled kits are universal to any type of tile replacement flashing. Kits include sled, 5/16 In. SS lags, and base flashing (optional).
General Information
Type
S-Tile
Color
Black
Finish
Black Finish
Material
Galvalume Plus
Application
Sloped Roof - Tile
