Catalog #

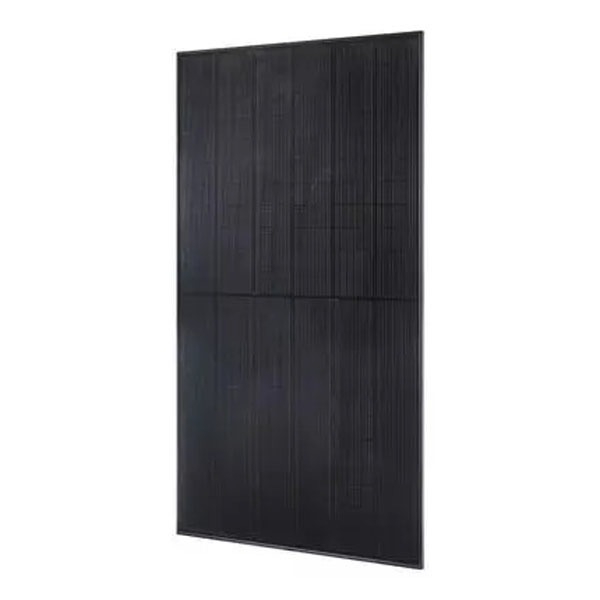

EVPV430HK2
Mfr. Part #
EVPV430HK2
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
413.1
Watts STC
430 W
Cells
132
Technology
HJT
Open Circuit Voltage (Voc)
49.3
Short Circuit Current (Isc)
10.81
Max Power Voltage (Vmpp)
42.8
Max Power Current (Impp)
10.05
Max Current
25 A
Efficiency
22.2
Frame Thickness (mm)
30
Frame Color
Black
Connector
Staubli MC4 PV-KBT4/KST4 (4 mm2)
Output Cables
12AWG(4mm2) PV Wire, 49.2+49.2 in
Temp Coefficient (Pmpp)
-0.24
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 2
General Information
Dimensions
1865 L x 1040 W x 30 H mm
Weight
47.6 Lbs.
Series
EverVolt HK2 Black
Approvals
UL 61730 IEC61215:2021 [Hailstone 35mm] Fire Type 2 (UL 61730) Salt Mist [IEC 61701] PID [IEC 62804] Ammonia Resistance [IEC 62716] Lead-free acc. to RoHS EU 863/2015 [IEC 62321]
