Catalog #
MSE380SX5R
Mfr. Part #
MSE380SX5R
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Description

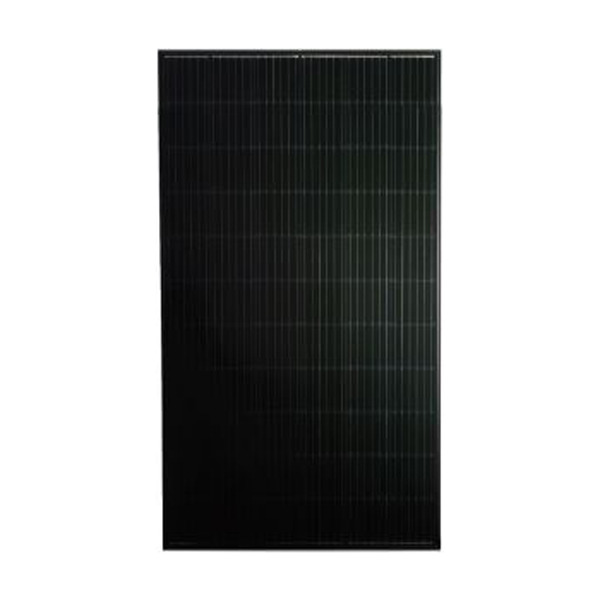

Mission Solar Energy 380W 66 Cell PERC BLK/BLK 1000V Solar Panel, MSE380SX5RDegradation guaranteed not to exceed 2% in year one and 0.58% annually from years two to 30 with 84.08% guaranteed in year 25. For more information visit www.missionsolar.com/warranty.
Technical Specifications
Watts PTC
380
Watts STC
380 W
Cells
66
Technology
PERC
Open Circuit Voltage (Voc)
44.84
Short Circuit Current (Isc)
10.91
Max Power Voltage (Vmpp)
36.75
Max Power Current (Impp)
10.34
Max Current
20 A
Efficiency
19.1%
Frame Material
Anodized Aluminum
Frame Thickness (mm)
40
Frame Color
Black
Backsheet Material
Black
Connector
MC4
Output Cables
12AWG. 1000mm
Temp Coefficient (Pmpp)
-0.36
Temp Coefficient (Voc)
-0.26
Fire Classification (Type)
Type 1
