Catalog #
MSE350SX5T
Mfr. Part #
MSE350SX5T
Manufacturer
Category
Description

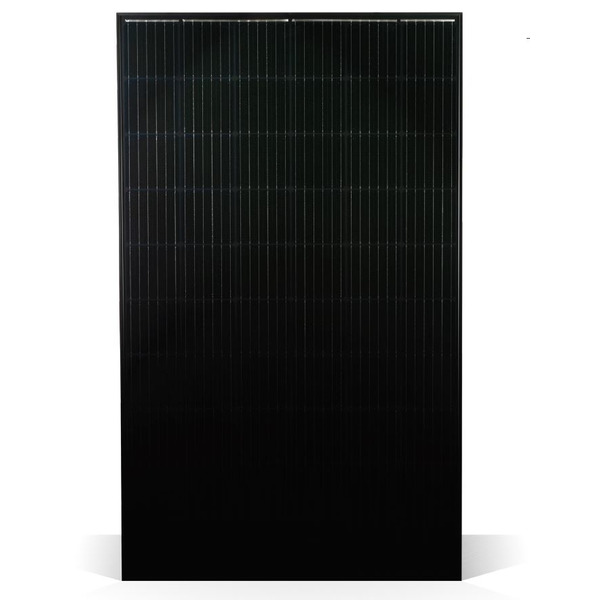

Mission Solar Energy 350W 60 Cell PERC BLK/BLK 1000V Solar Panel, MSE350SX5TMission Solar Energy is headquartered in San Antonio, Texas, where we manufacture our modules. We produce American, high quality solar modules ensuring the highest in-class power output and best in-class reliability. Our product line is tailored for residential, commercial and utility applications. Every Mission Solar Energy solar module is certified and surpasses industry standard regulations, proving excellent performance over the long term
Technical Specifications
Watts PTC
350
Watts STC
350 W
Cells
60
Technology
Mono PERC
Open Circuit Voltage (Voc)
41.18
Short Circuit Current (Isc)
10.97
Max Power Voltage (Vmpp)
33.52
Max Power Current (Impp)
10.44
Max Current
20 A
Efficiency
19%
Frame Material
Anodized Aluminum
Frame Color
Black
Backsheet Material
Black
Connector
MC4
Output Cables
12 AWG. 1000mm
Temp Coefficient (Pmpp)
-0.36
Temp Coefficient (Voc)
-0.26
Fire Classification (Type)
Type 1
General Information
Dimensions
1748 L x 1054 W x 40 H mm
Weight
20.3 kg
Approvals
UL61730
