Catalog #
MNEAC20-2P
Mfr. Part #
MNEAC20-2P
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Description

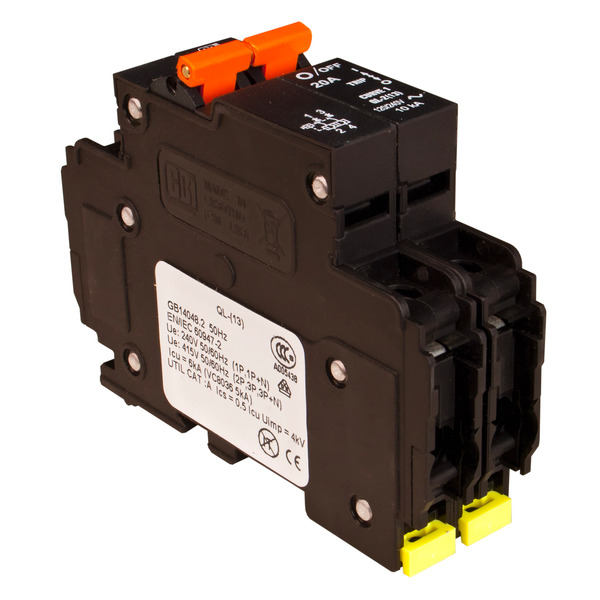

MidNite Solar MNEAC20-2P 20A 120/240VAC DIN Rail Breaker
20 amp din rail mount 120/240 VAC Branch circuit rated 489 two pole. 10,000 AIC
MidNite’s breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
Breaker Torque Value: 20 In-Lbs (2.3NM)
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.
- Environmental Rating - Type 1 (Indoor)
- Listed for US andamp; Canada
Technical Specifications
Max Current
20 A
Mounting Type
DIN Rail
Actuator Type
Toggle
Poles
2 Pole
AC Voltages
120/240 VAC
Ampere Interrupting Capacity
10 kAIC
Input Current
20 A
General Information
Type
Miniature
