Catalog #

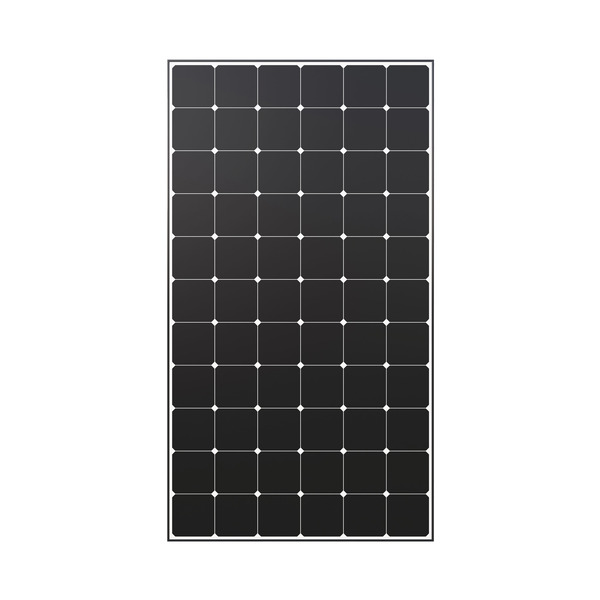

SPR-MAX6-435
Mfr. Part #
SPR-MAX6-435
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts STC
435 W
Cells
66
Technology
Monocrystalline
Open Circuit Voltage (Voc)
48.2
Short Circuit Current (Isc)
11.57
Max Power Voltage (Vmpp)
40.3
Max Power Current (Impp)
10.82
Max Current
20 A
Efficiency
22.5
Frame Material
Anodized Aluminum
Frame Thickness (mm)
40
Frame Color
Black
Connector
EVO2
Output Cables
52.0 In. +/-0.4 In.
Temp Coefficient (Pmpp)
-0.29
Temp Coefficient (Voc)
-0.239
Fire Classification (Type)
Type 2
General Information
Dimensions
1872 L x 1032 W x 40 H mm
Weight
46 Lbs.
Series
Maxeon 6
Approvals
UL 61730
IEC 61215
IEC 61730
ISO 9001:2015
ISO 14001:2015
IEC 62716
IEC 60068-2-68
MIL-STD-810G
IEC 61701 (Severity 6)
IEC 62804
