Catalog #

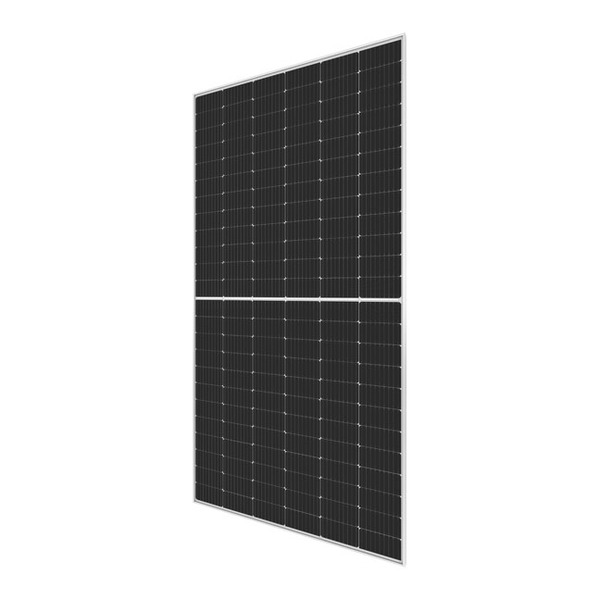

LR5-72HBD-540M
Mfr. Part #
LR5-72HBD-540M
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
621
Watts STC
540 W
Cells
144
Technology
M10 Gallium-doped Wafer
Open Circuit Voltage (Voc)
49.5
Short Circuit Current (Isc)
15.92
Max Power Voltage (Vmpp)
41.75
Max Power Current (Impp)
14.91
Max Current
30 A
Efficiency
21.1
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
2.0+2.0mm Heat Strengthened Glass
Connector
PV-LR5-01
Output Cables
4mm2, +400, -200mm/+-1400mm
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.265
Fire Classification (Type)
Type 29
General Information
Dimensions
2256 L x 1133 W x 35 H mm
Weight
71.21 Lbs.
Series
Hi-MO 5
Approvals
IEC 61215
IEC 61730
UL 61730
ISO 9001: 2015
ISO 14001: 2015
ISO 45001: 2018
IEC 62941
