Catalog #

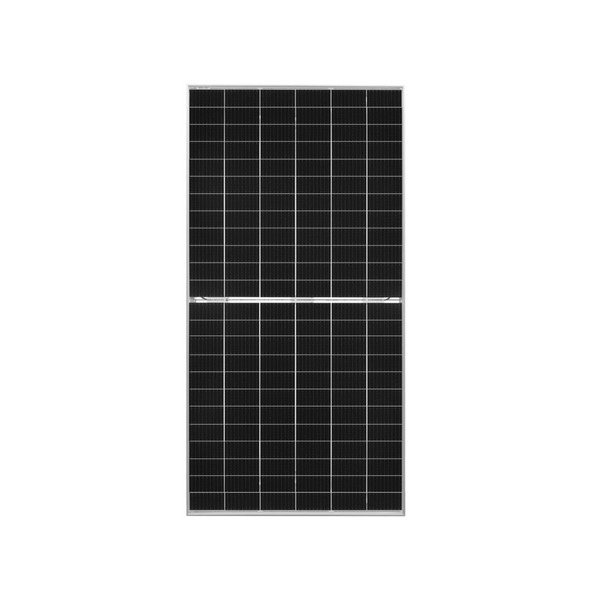

JKM535M-72HL4-TV
Mfr. Part #
JKM535M-72HL4-TV
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
502.2
Watts STC
535 W
Cells
144
Technology
Monocrystalline
Open Circuit Voltage (Voc)
49.42
Short Circuit Current (Isc)
13.79
Max Power Voltage (Vmpp)
40.81
Max Power Current (Impp)
13.11
Max Current
30 A
Efficiency
20.75
Frame Material
Anodized Alluminum Alloy
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
DuPont Tedlar
Connector
JK03M
Output Cables
12 AWG, 1400mm
Temp Coefficient (Pmpp)
-0.35
Temp Coefficient (Voc)
-0.28
Fire Classification (Type)
Type 1
General Information
Dimensions
2278 L x 1134 W x 35 H mm
Weight
64.82 Lbs.
Series
Eagle 72 G5b
Approvals
ISO9001:2015 Quality Standards
ISO14001:2015 Environmental Standards
IEC61215
IEC61730 certified products
ISO45001:2018 Occupational Health & Safety Standards
UL61730 certified products
