Catalog #
JKM460M-7RL3-TV
Mfr. Part #
JKM460M-7RL3-TV
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Description

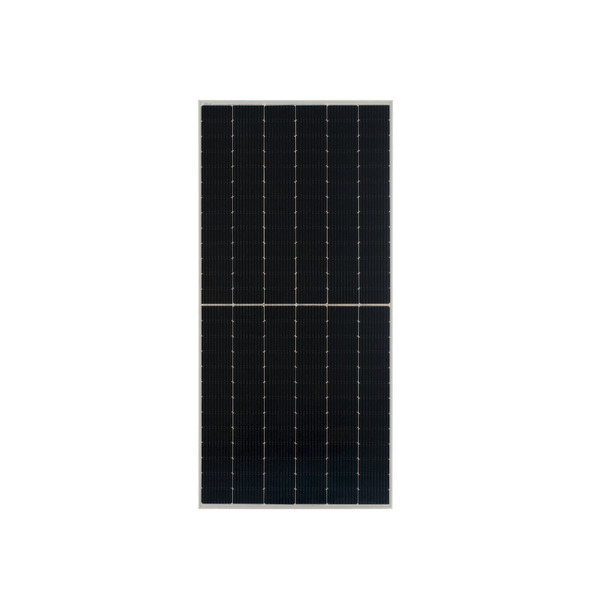

Eagle 78TR G4b | 460W 78 Half-Cell Mono Bifacial 1500V Solar Panel, JKM460M-7RL3-TV
Technical Specifications
Watts PTC
424.2
Watts STC
460 W
Cells
156
Technology
Monocrystalline
Open Circuit Voltage (Voc)
51.9
Short Circuit Current (Isc)
11.35
Max Power Voltage (Vmpp)
43.32
Max Power Current (Impp)
10.62
Max Current
25 A
Efficiency
20.21
Frame Material
Anodized Alluminum Alloy
Frame Thickness (mm)
40
Frame Color
Silver
Backsheet Material
DuPont Tedlar
Connector
JK03M
Output Cables
12 AWG, 1400mm
Temp Coefficient (Pmpp)
-0.35
Temp Coefficient (Voc)
-0.28
Fire Classification (Type)
Type 1
General Information
Dimensions
2205 L x 1032 W x 40 H mm
Weight
58.42 Lbs.
Series
Eagle 78TR G4b
Approvals
ISO9001:2015 Quality Standards
ISO14001:2015 Environmental Standards
IEC61215
IEC61730 certified products
ISO45001:2018 Occupational Health & Safety Standards
UL61730 certified products
