Catalog #

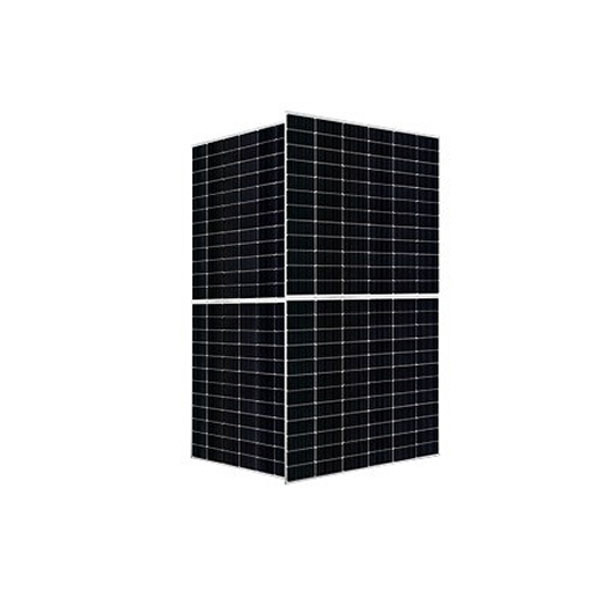

JAM72D30-535/MB
Mfr. Part #
JAM72D30-535/MB
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
572
Watts STC
535 W
Cells
144
Technology
PERC
Open Circuit Voltage (Voc)
49.45
Short Circuit Current (Isc)
13.79
Max Power Voltage (Vmpp)
41.47
Max Power Current (Impp)
12.9
Max Current
30 A
Efficiency
20.7
Frame Material
Aluminum
Frame Thickness (mm)
30
Frame Color
Silver
Backsheet Material
2 mm Glass
Connector
QC 4.10-351/MC4-EVO2A
Output Cables
4mm2 12AWG
Temp Coefficient (Pmpp)
-0.35
Temp Coefficient (Voc)
-0.275
Fire Classification (Type)
Type 29
General Information
Dimensions
2278 L x 1134 W x 30 H mm
Weight
70.1 Lbs.
Series
DEEP BLUE 3.0
Approvals
IEC/UL 61215
IEC/UL 61730
ISO 9001: 2015
ISO 14001: 2015
ISO 45001: 2018
IEC 62941: 2019
