Catalog #
4,210,062,800
Mfr. Part #
4,210,062,800
Manufacturer
Category
Description

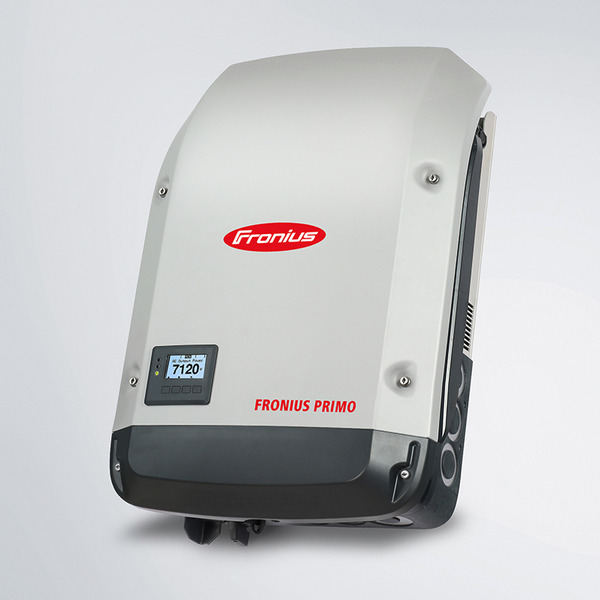

Fronius Primo 6.0-1 6.0kW TL 208 / 240 VAC Transformerless Inverter 4,210,062,800
Note: This inverter is rated for up to 1000 V open-circuit. Nominal, Operating, and MPP voltages based on 600 V system design. Actual DC system voltage is dependent on PV string-sizing, not inverter input capacity.
With power categories ranging from 3.8 kW to 15.0 kW, the transformerless Fronius Primo is the ideal compact single-phase inverter for residential applications. The sleek design is equipped with the SnapINverter hinge mounting system which allows for lightweight, secure and convenient installation. The Fronius Primo has several integrated features that set it apart from competitors including dual powerpoint trackers, high system voltage, a wide input voltage range, Wi-Fi and SunSpec Modbus interface, and Fronius’ online and mobile monitoring platform Fronius Solar.web. The Fronius Primo also works seamlessly with the Fronius Rapid Shutdown Box as a reliable rapid shutdown solution outside the PV Array boundary.
Technical Specifications
Continuous AC Power Output
6000 W
AC Voltages
208, 240 VAC
AC Frequencies
60 Hz
Recommended PV Input (STC)
9300 W
Topology
Transformerless
Phase
1 Phase
Maximum DC Input Voltage
600 VDC
Maximum DC Input Current
18 A
Peak Efficiency
97.9 %
CEC Efficiency
96.5 %
Number of MPPT's
2
Max MPPT Voltage
480 V
Min MPPT Voltage
240 V
Positive Input Channels
4
Negative Input Channels
4
Mounting Type
DIN Rail|Rack|Surface Mount
Special Features
Wifi Interface Option, Field Serviceability, Design Flexibility
General Information
Type
String Inverter
Series
Primo Series
Approvals
UL 1741-2010
UL1998 (for functions: AFCI and isolation monitoring)
IEEE 1547-2003
IEEE 1547.1-2003
ANSI/IEEE C62.41
FCC Part 15 A and B
NEC Article 690
C22. 2 No. 107.1-01 (September 2001)
UL1699B Issue 2 -2013
CSA TIL M-07 Issue 1-2013
