Catalog #
4,210,078,800
Mfr. Part #
4,210,078,800
Manufacturer
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

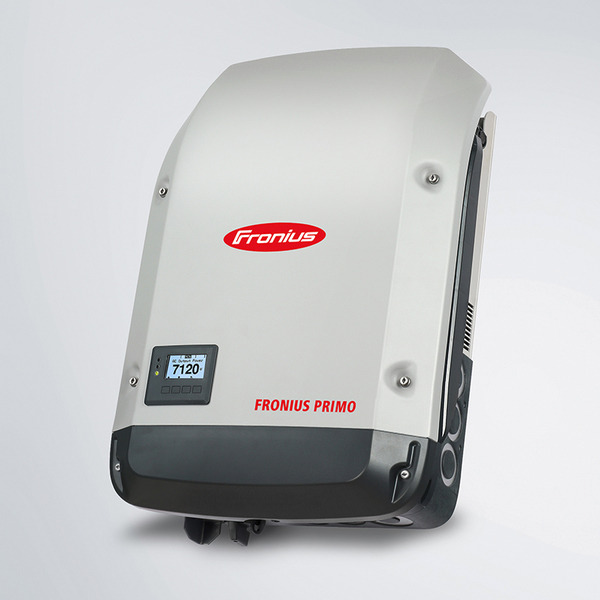

Fronius Primo 15.0-1 15kW TL 208 / 240 VAC Transformerless Inverter 4,210,061,800


Design flexibility and unrivaled power capability in one sleek package.


The transformerless, single-phase Fronius Primo is the ideal solar inverter for residential applications with a 208/240 grid connection. The SnapINverter has many standard features, making it convenient and “one-stop shop" for a high quality inverter. The hinge mounting system and lightweight inverter itself creates a streamlined installation process that can be done in under 15 minutes. Several industry-leading additions come standard with the Fronius Primo including Wi-Fi and SunSpec Modbus interfaces for seamless monitoring and datalogging, field proven Arc Fault Circuit Interruption (AFCI), and Fronius’ free online and mobile monitoring platform Fronius Solar.web. Ready for NEC 2014 and codes of the future.

Technical Specifications

Continuous AC Power Output
15000 W
Max Operating Voltage
600 V
Min Operating Voltage
80 V
AC Voltages
120, 208, 240 VAC
AC Frequencies
60 Hz
Recommended PV Input (STC)
18000 W
Topology
Transformerless
Phase
1 Phase
Maximum DC Input Voltage
600 VDC
Maximum DC Input Current
51 A
Peak Efficiency
96.7 %
CEC Efficiency
96.5 %
Number of MPPT's
2
Max MPPT Voltage
480 V
Min MPPT Voltage
240 V
Positive Input Channels
4
Negative Input Channels
4
Enclosure Ratings
NEMA 4X
Mounting Type
Rack

General Information

Type
String Inverter
Approvals
UL 1741-2010
UL1998 (for functions: AFCI and isolation monitoring)
IEEE 1547-2003
IEEE 1547.1-2003
ANSI/IEEE C62.41
FCC Part 15 A and B
NEC Article 690
C22. 2 No. 107.1-01 (September 2001)
UL1699B Issue 2 -2013
CSA TIL M-07 Issue 1-2014
