Catalog #
Q-CONN-10M
Mfr. Part #
Q-CONN-10M
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Description

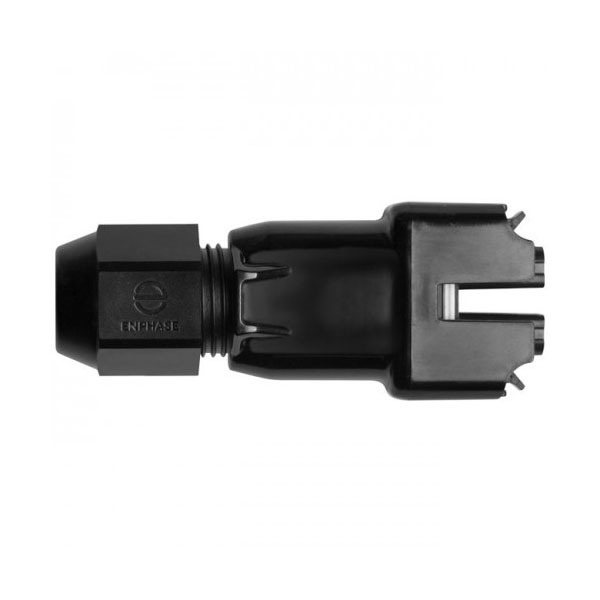

Field Wireable Q Connectors and Raw Q Cable
The IQ Microinverter System makes complex installations simple.
Field Wireable Q Connectors (Q-CONN-10F and Q-CONN-10M) and raw Q Cable (Q-12-RAW-300) allow a wide-range of installation options that are not available in DC systems or other microinverter systems. You can run raw Q Cable through conduits, raceways, or chases between sub-arrays to help to minimize the amount of conduit, conduit bending, wire-pulls, and wiring connections that are required on a project.
The raw Q Cable is available in 300m (938ft) cable rolls (Q-12-RAW-300).
You must terminate the raw Q Cable in one of the following manners:
- Into a junction box using a 1/2" service entrance (SE) strain reliefs or UF cable glands
- With a Field Wireable Q Connector (male or female)
General Information
Type
Male Q Connector
Use With
Q Cable
