Catalog #
JKM400M-72HL-V
Mfr. Part #
JKM400M-72HL-V
Manufacturer
Category
Description

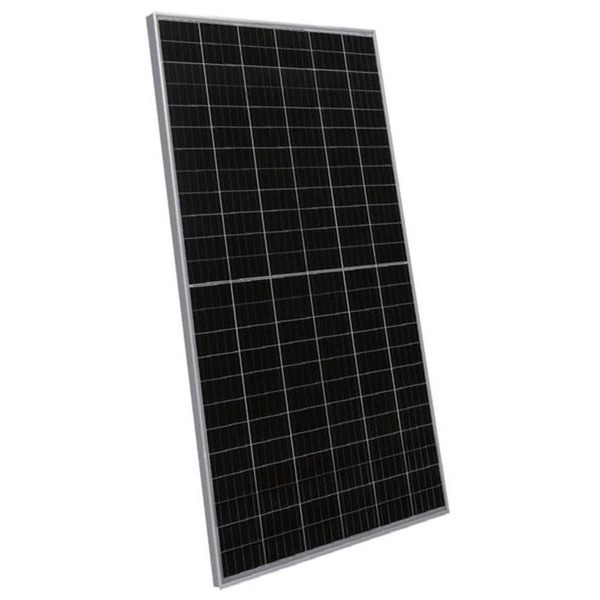

Eagle 72HM G2 | 400W 72 Half-Cell Mono SLV/WHT 1500V Solar Panel, JKM400M-72HL-VThe Eagle G2 modules include our Diamond cells. These uniquely designed cells feature high-efficiency mono PERC technology and enable module power up to 410W.Features:• Uniquely designed high-performance 5 busbar mono PERC cells• UL and IEC 1500V certified; lowers BOS costs and yields better LCOE• Reinforced cells prevent PID• Excellent performance in low-light environments• Certified for high snow and wind loads• 25-year linear power warranty
Technical Specifications
Watts STC
400 W
Cells
72
Technology
Mono
Open Circuit Voltage (Voc)
49.8
Short Circuit Current (Isc)
10.36
Max Power Voltage (Vmpp)
41.7
Max Power Current (Impp)
9.6
Max Current
9.6 A
Efficiency
19.88
Frame Material
Aluminum
Frame Thickness (mm)
40
Frame Color
Black
Backsheet Material
White
Output Cables
PV Wire
Fire Classification (Type)
1
General Information
Dimensions
79.06 L x 39.45 W x 1.57 H In.
