Catalog #
PLCS-600-CM-BASE
Mfr. Part #
PLCS-600-CM-BASE
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Description

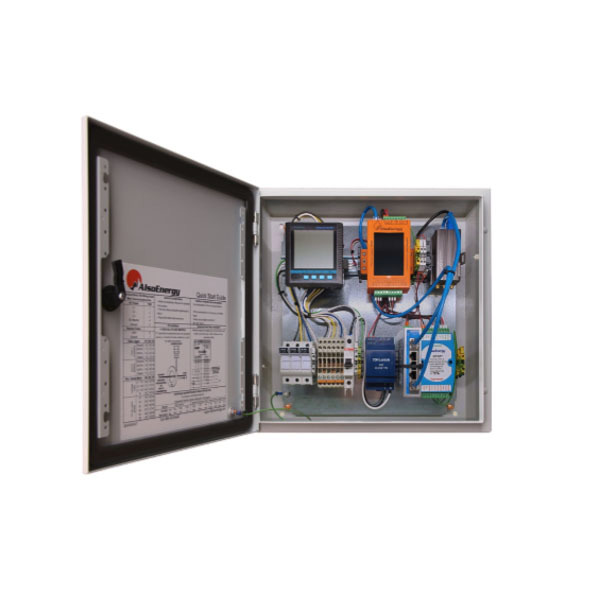

Standardized DAS Kit With Power Logger 1000, Cell Modem, Plus Weather Kit
- Internal 100 / 240 / 277 VAC Power Supply, 47Hz - 63Hz, hardwire to AC Circuit
- Includes Integrated Surge Suppression on RS-485 and 24VDC output
- 5A 3P Energy Meter, requires CT's per customer specification, purchased separately
- Includes 5-port 10/100Mbps Ethernet Switch
- Includes 4G LTE Cell Modem, requires cellular data plan, purchased separately
- Includes standard steel enclosure with screw driver lock, NEMA 4X rated
- Dimensions: 400x400x200mm (15.75x15.75x7.9") WxHxD
- Includes: digital silicon reference cell irradiance sensor with 3m (9.8') cable, extendable to 304m (1000') with customer-provided RS-485 and power cable
- Includes: Module temperature sensor with 3m (9.8') cable, connect to reference cell
- Includes: Wind speed sensor with 5m (16.4') cable, connect to reference cell
- Includes: ambient temperature sensor with 3m (9.8') cable, connect to data logger
- DIN Rail, Terminal Blocks, Wiring, Testing, U.L. Listing Included
- Operating Temperature Range: -25°C to +70°C
General Information
Dimensions
15.75 W x 15.75 H x 7.9 D In.
