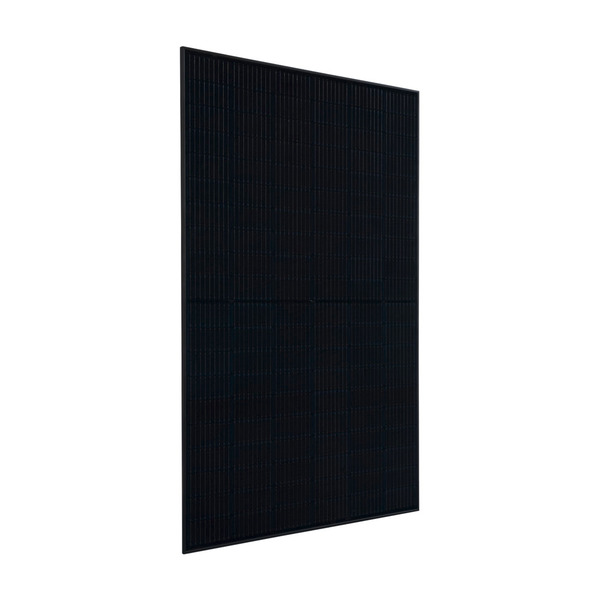

Catalog #
DNA-144-BF10-550W-DG
Mfr. Part #
DNA-144-BF10-550W-DG
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts PTC
416
Watts STC
550 W
Cells
144
Technology
PERC
Open Circuit Voltage (Voc)
49.80
Short Circuit Current (Isc)
13.99
Max Power Voltage (Vmpp)
44.15
Max Power Current (Impp)
12.45
Max Current
30 A
Efficiency
21.29
Max System Voltage
1500 V
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
35
Frame Color
Black
Backsheet Material
Semi-Tempered Dual Glass
Connector
Staubli EVO2
Output Cables
4mm2 (EU)12AWG,(1200mm)
Series Fuse Rating (Amps)
30
Temp Coefficient (Pmpp)
-0.335
Temp Coefficient (Voc)
-0.277
Fire Classification (Type)
Type 29

General Information

Dimensions
2278 L x 1134 W x 35 H mm
Weight
71.20 Lbs.
Series
DNA Split Cell
